LED fender lights
Standard switch-operated LED fender lights offer great benefits and features for increased visibility. With lighting mounted to the fender, above the drive tire on each side, fender lights help ensure that you can see and be seen.
Drive Wheel Accent Colors
Power Adjustable Seat Lift
iLevel improves access to one's environment and enhances social interaction by allowing operation of the power chair with the seat fully elevated while at walking speed (up to 4.5 mph).
TRU-Balance® 3 Power Positioning Systems
TRU-Balance® 3 Power Positioning Systems feature an innovative design that maximizes functional independence while providing an appealing look and feel. TRU-Balance 3 has the ability for quick and easy fine-tuning adjustments to ensure maximum comfort and positioning. Optional 12" iLevel® power adjustable seat height is available.
Synergy® Seating System
The Synergy Seating System offers a clean, streamlined appearance and unparalleled ease of adjustment.
Contoured seating is the standard seating option on Quantum Power Chairs. Contoured seating features a black vinyl Captain's seat with options consisting of a high back or medium back, solid seat pan, limited recline, and depth adjustability. It is selected when special positioning is not required.
The Q-Logic 3 Advanced Drive Control System from Quantum Rehab® is like no other power wheelchair electronics system. Designed from clinician and consumer feedback, Q-Logic 3 is user-friendly and highly customizable. This adaptable, expandable control system can increase and maximize independence.

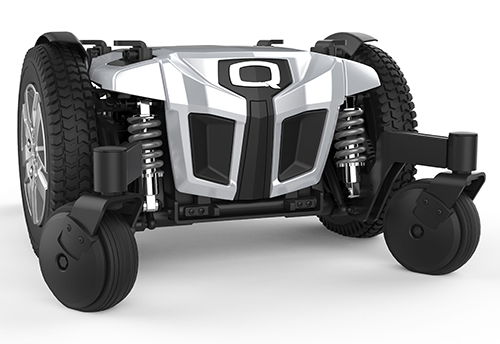

|Model||Q6 Edge 2.0 X|
|Drive Wheels||Standard: 14" Solid|
Optional: 14" Pneumatic, 14" Knobby
|Caster Wheels||Front: 6" Solid (Optional: 8” solid)|
Rear: 6" Solid (Optional: 8” solid)
|Maximum Speed4||Up to 6 mph|
|Ground Clearance||2.7" (battery tray)|
|Turning Radius5||20.5" with 6" casters|
23.25" with 8" casters
|Overall Length||35.5" with 6" casters|
40.48" with 8" casters
|Seating Sizes||TRU-Balance® 3|
Synergy®/Static: W: 10-22" D: 10-22"
Power Tilt: W: 12-22" D: 12-22"
Lift & Tilt: W: 16-22" D: 14-22"
|Seat-to-Floor Heights16||TRU-Balance® 3|
Power Tilt8: 17.5-19.5"
Lift & Tilt8: 17.5-19.5"
|Battery Weight14||38 lbs.|
|Available Electronics12||120A Q-Logic 3 EX|
|Battery Charger||8A Off-board|
|Motor Packages||Two-pole, Mid-Wheel 6®|
|Weight Capacity7||300 lbs.|
|Base Weight||138.6 lbs. with 6" casters|
148 lbs. with 8" casters
|Medicare Code Coverage||Group 3:|
Single Power (K0856)
Multiple Power (K0861)
4 Speed varies with user weight, terrain type, battery charge, battery condition and tire pressure.
5 Without front riggings
6 Battery capacity may change when adding power positioning systems.
7 Weight capacity is dictated by the selection of seating.
8 All measurements +/- 1/8" with 18" x 18" seat, fixed towers, 300 lbs. weight capacity and solid tires (add 3/8" with pneumatic tires). Depths may increase seat-to-floor height. Contact Customer Service for details. Limited measurements are in the lowest position; does not include elevating system unless specified.
10 Maximum dimensions of the Manual Recline vary by power base and seating system. Call for details.
12 All Quantum Rehab® units can be ordered with specialty controls
14 Battery weight may vary +/- 3 lbs. based on manufacturer.
16 Seat-to-floor heights are measured with the unit unloaded.
The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
