LED fender lights
Standard switch-operated LED fender lights offer great benefits and features for increased visibility. With lighting mounted to the fender, above the drive tire on each side of the power wheelchair, fender lights help ensure that you can see and be seen.

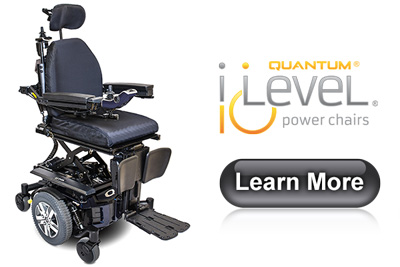

10" Power Adjustable Seat Lift
iLevel improves access to one's environment and enhances social interaction by allowing operation of the power chair with the seat elevated (up to 10 inches) in 16 seconds while at walking speed (up to 3.5 mph).
TRU-Balance® 3 Power Positioning Systems
TRU-Balance 3 Power Positioning Systems feature an innovative design that maximizes functional independence while providing an appealing look and feel.
Synergy® Seating System
The Synergy Seating System offers a clean, streamlined appearance and unparalleled ease of adjustment.
Contoured seating is the standard seating option on Quantum Power Chairs. Contoured seating features a black vinyl Captain's seat with options consisting of a high back or medium back, solid seat pan, limited recline, and depth adjustability. It is selected when special positioning is not required.
The Q-Logic 2 Drive Control System by Quantum Rehab® features programming and customization options for a smooth ride. The Q-Logic Series creates an adaptable, expandable control system that serves even the most complex needs while delivering a host of exclusive features.
The NE+ is a non-expandable rehab electronic controller that offers 2-actuator control for TRU-Balance® Power Positioning Systems and a standard 1/8" auxiliary port for adaptive switches.

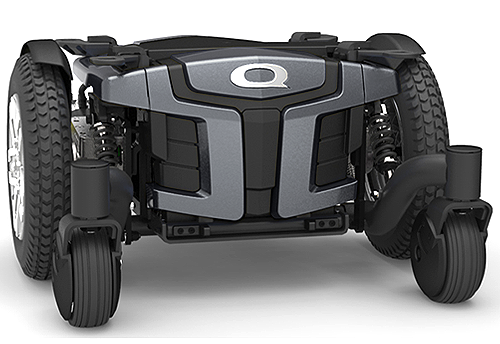

|Model||Q6 Edge Z|
|Drive Wheels||14" Solid|
|Caster Wheels||Front: 6" Solid|
Rear: 6" Solid
|Maximum Speed4||Standard: Up to 6.2 mph|
Optional: Up to 8 mph
|Ground Clearance||3" at base frame|
|Overall Length||44.4" with front riggings|
35.6" without front riggings
|Seating Sizes||TRU-Balance® 3|
High-Back: W: 16-24" D: 16-24"
Synergy®: W: 10-24" D: 10-24"
Static: W: 12-24" D: 12-24"
Power Tilt: W: 12-24" D: 14-24"
Lift: W: 12-24" D: 12-24"
|Seat-to-Floor Heights||TRU-Balance® 3|
Power Tilt8: 18.125-20.125"
Lift & Tilt8: 19.75-21.375"
|Battery Size6||Group 24|
|Battery Weight14||52 lbs. each|
|Available Electronics12||75A Q-Logic 2 NE+|
100A Q-Logic 2 EX
|Battery Charger||8A Off-board|
|Motor Packages||4-pole Mid-Wheel 6®|
|Weight Capacity7||300 lbs.|
|Base Weight||143.5 lbs. (without batteries)|
|Medicare Code Coverage||Group 3:|
Single Power (K0856)
Multiple Power (K0861)
4 Speed varies with user weight, terrain type, battery charge, battery condition and tire pressure.
5 Without front riggings
6 Battery capacity may change when adding power positioning systems.
8 All measurement +/- 1/8" with 18" x 18" seat, fixed towers, 300 lbs. weight capacity and solid tires (add 3/8" with pneumatic tires). Depths may increase seat-to-floor height. Contact Customer Service for details. Limited measurements are in the lowest position; does not include elevating system unless specified.
12 All Quantum Rehab® units can be ordered with specialty controls
14 Battery weight may vary +/- 3 lbs. based on manufacturer.
The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
